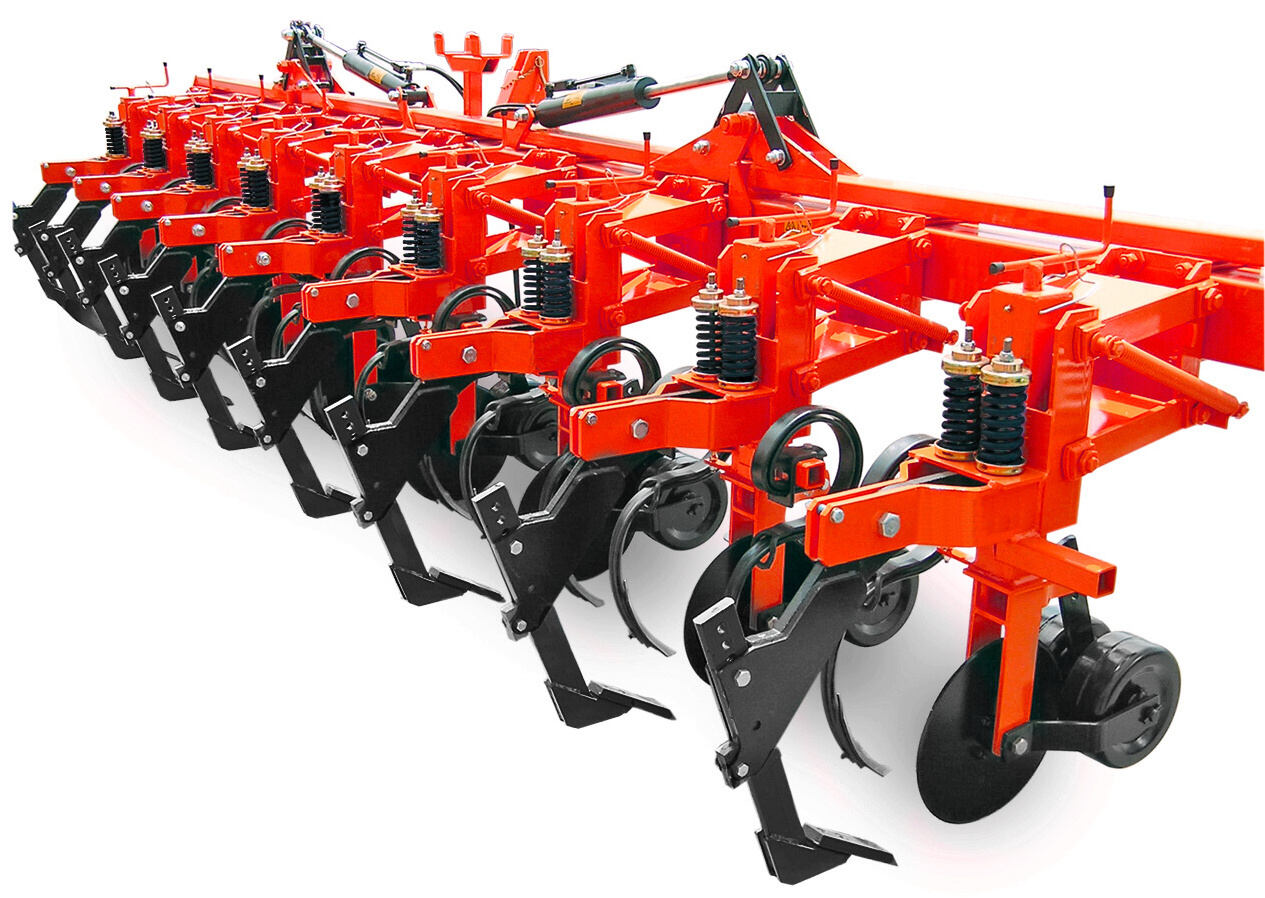

Reihenkultivator EKO
EKO is an carried machine for inter-row space cultivation of grown crops. Construction variability enables adjusting of the interrow distance as well as working organs choice depending on the intended application.
Basic working elements are arrow shaped shares suitable for first shallow cultivation and for light soil range of work. This type of share completely undercuts the inter-row space. Second option is a robust chissel share with disc and two small chissels. It is a good combination for deep field preparation on the fields with dry and heavy soils.
Usage for:
- Inter-row space cultivation
- Top layer interruption
- Surface aeration
- Fertilisation possibility
- Weed elimination (Chemicals avoiding)
Machine pros:
+ smart and robust construction
+ Perfect surface copying
+ adjustable stifnnes of the suspension system
+ Crop protectors
Model | R4 | R6 | R8 |
|---|---|---|---|
Number of rows | 4 | 6 | 8 |
Inter-row distance (cm) | 70-75 | 70-75 | 70-75 |
Number of working units | 5 | 7 | 9 |
Trasnport width (cm) | 250 | 250 | 300 |
Working depth (cm) | 2-10 | 2-10 | 2-10 |
Min. power output (kW) | 40 | 55 | 75 |
Working units
Crop protector
