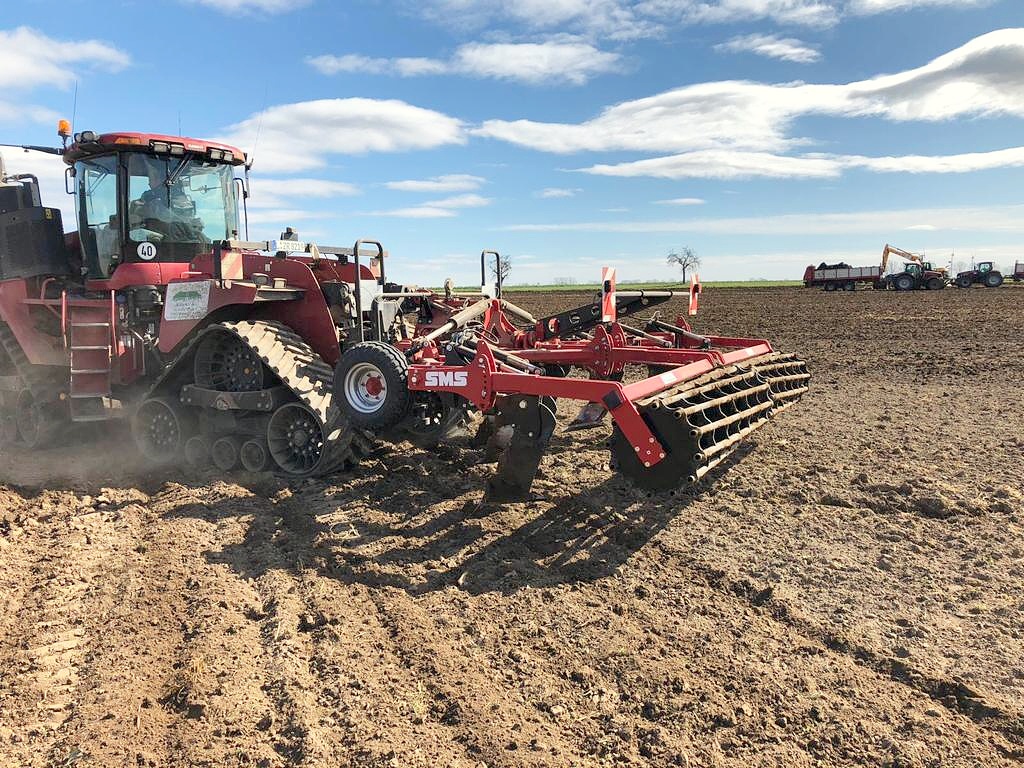

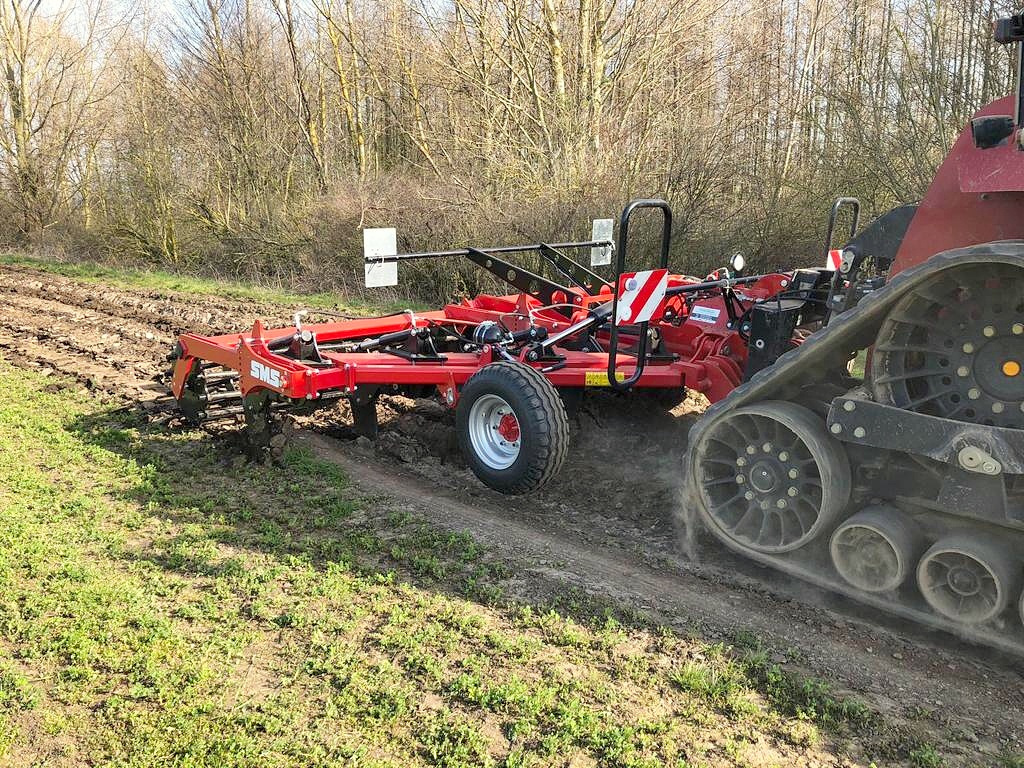

Subsoiler Talon
The subsoiler TALON is a variable machine for deep soil cultivation which succeed in even in the toughest conditions. Lifting, loosening and aeration of the soil profile at once without is the main advantage of the machine, lower soil layer does is not elevated upwards. The tine aggressiveness can be adjusted by its position on the main frame or by tractor hitch.
- Soil aeration
- Penetration of subsoiling level
- Improve rainwater absorption
- Recovery of water capillarity
The arrowhead shape of the main frame ensures smooth running even in difficult terrain and allows infinite adjustment of tines spacing. Tines are protected against overloading by a shear bolt or hydraulically. Various types of crumbling rollers can be fitted as additional equipment.
- Working depth up to 45 cm
- Support wheels for precision working depth control
Version | 200/3 | 300/4 | 300/6 | 400/8 | 400/8 H | 470/8 H | 550/10 H |
|---|---|---|---|---|---|---|---|
No of tines | 3 | 4 | 6 | 8 | 8 | 8 | 10 |
Working width (cm) | 190 | 300 | 300 | 400 | 400 | 470 | 550 |
Transport width (mm) | 1990 | 2990 | 2990 | 4000 | 2990 | 2950 | 2950 |
Working depth (cm) | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
Min. power output (kW) | 130 | 140 | 150 | 170 | 170 | 180 | 220 |
Weight * (kg) | 810 | 980 | 1160 | 1410 | 1620 | 3030 | 3190 |
Working speed (km/h) | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 | 6-8 |
