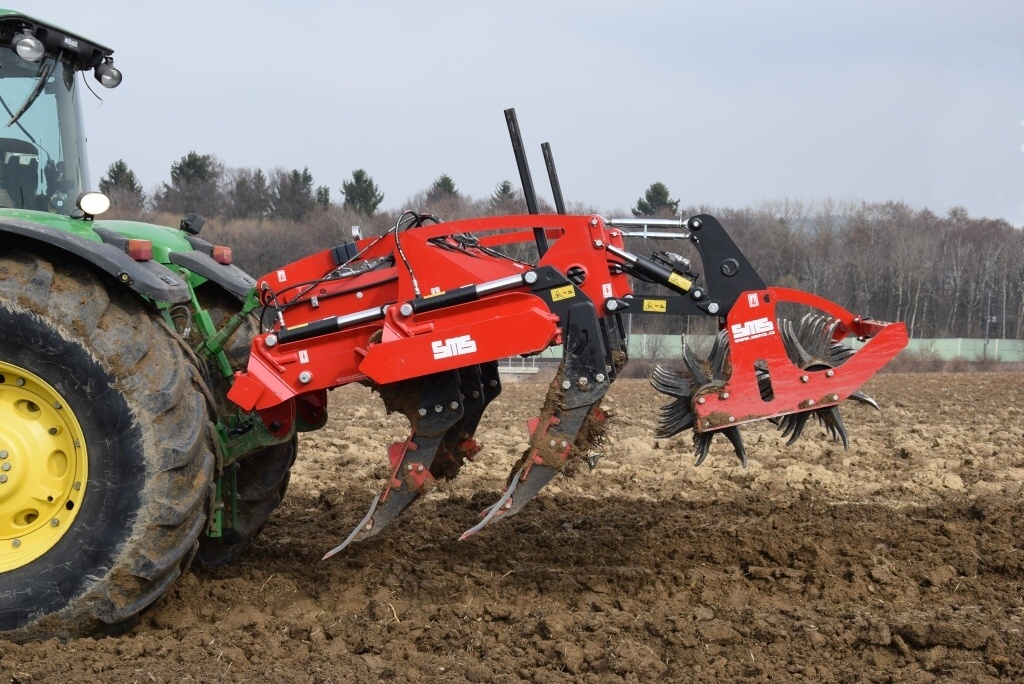

Chisel subsoiler Talon Medium
TALON MEDIUM is a chisel plough for deep soil cultivation up to 45 cm. The main frame has the same design as MAX version, but Talon MEDIUM is equipped with shorter tines. The machine can be used as a suitable alternative for ploughing. The shorter tines and equivalently smaller attachment on the machine reduce overall weight which is an essential factor for carried machines. It results in lower fuel consumption or possibility to attach machine with wider working width.
- Soil aeration
- Breaking up the plough pan
- Increased rainwater absorption
- Renewal of water capillarity
Machine can be fitted with two supporting rollers which perfectly crumble, flatten and prepare the soil for further processing. However, it can easily work without them or only with one roller. Working units can be protected mechanically using shear bolts for lighter soils or with hydropneumatics control system for heavy soils or soils with a high share of stones. In case of crash into an obstacle the tine can tilt aside and subsequently returns back to the original position.
- Working depth up to 65 cm
- Heavy construction of machine
- Convenient chisel angle causes lower translational resistance and lower tractor consumption
- Able to work even in wet conditions
- Self-cleaning double roller with forged spikes for high crushing effect
- Working speed up to 12 km/h
H models are hydraulically operated
Version | 250/5 | 300/7 | 400/9 | 400/9H | 500/13H |
|---|---|---|---|---|---|
No of tines | 5 | 7 | 9 | 9 | 13 |
Working width (cm) | 250 | 300 | 400 | 400 | 500 |
Transport width (mm) | 2500 | 2990 | 4000 | 2550 | 2550 |
Working depth (cm) | 45 | 45 | 45 | 45 | 45 |
Min. power output (kW) | 130 | 150 | 170 | 190 | 230 |
Weight * (kg) | 1650 | 2030 | 2680 | 2510 | 3180 |
Working speed (km/h) | 6-12 | 6-12 | 6-12 | 6-12 | 6-12 |
