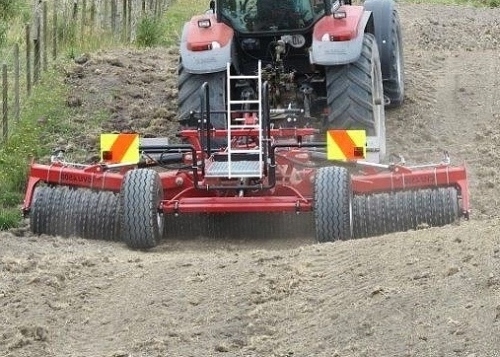

Roller Trigon
The roller TRIGON is a universal machine for both meadow and soil cultivation thanks to wide variety of additional accessories. Smartly designed machine concept excels in simplicity, working performance and undemanding maintenance. The roller is made from high strength materials and precisely manufactured that ensures long service life even in the hardest conditions.
Field use
- Pre-seeding field preparation
- Seeding of crops and intercrops
- Application of fertilizers
- Compaction after seeding
Meadow use
- Land leveling/straightening
- Grass land aeration
- Pull up moss and old grass
- Grass sowing and re-sowing
- Application of fertilizers
- Robust and reliable frame that allows precise land copying
- Original system TitanLoc for excellent axial tightening of casted rings on the shaft
- Wide offer of rollers and supplementary accessories
- Top quality cast rings and housings made of ductile iron
- Original hydraulic system for even weight distribution between central and wings frame

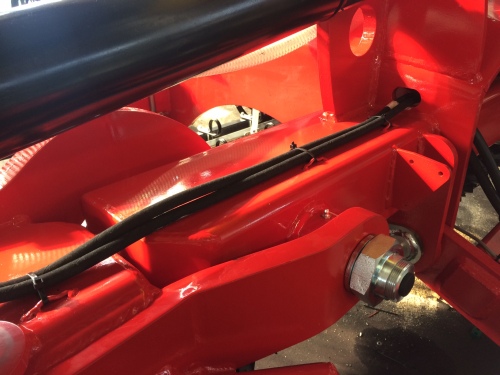

Pins and joints mounting richly dimensioned
System TitanLoc ensures excellent axial tightening of casted rings on the shaft
Weight distribution between central and wings frame by hydraulic pressure system

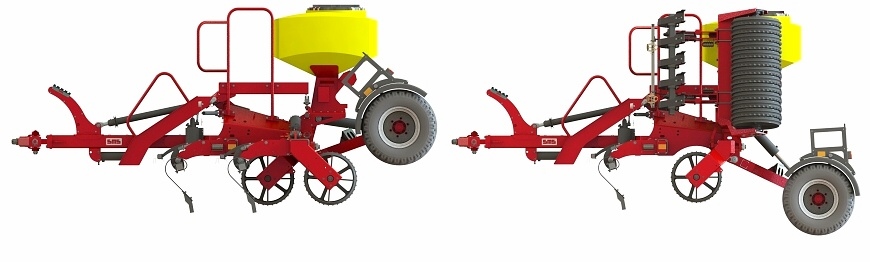

Wide range of accessories
Reliable terrain copying
Suitable for sloping terrain and less powerful tractors
Version | 450 | 520 | 600 |
|---|---|---|---|
Working width (cm) | 450 | 520 | 600 |
Transport width (mm) | 2950 | 2950 | 2950 |
Weight* (kg) | 3430 | 3650 | 3870 |
Working speed (km/h) | 6-10 | 6-10 | 6-10 |
Min. power output (kW) | 50 | 55 | 60 |
Linkage type | Oko ⌀40 mm | Oko ⌀40 mm | Oko ⌀40 mm |
Tire size | 400/60-15,5 | 400/60-15,5 | 400/60-15,5 |
Rollers
Leveling section

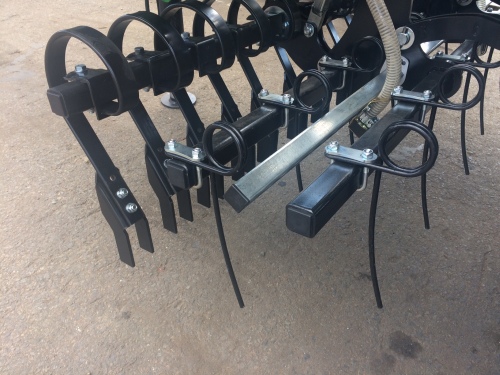

Types of shares
Other options
