Ploughs INFINITE
NEW 2024
The Infinite ploughs are high performance and long lifetime. The machines are designed for traditional ploughing and have a furrow count of 4, 5 or 6 depending on the model selected. They are characterised by easy maintenance and the machine is designed to allow easy maintenance and quick replacement of worn parts.

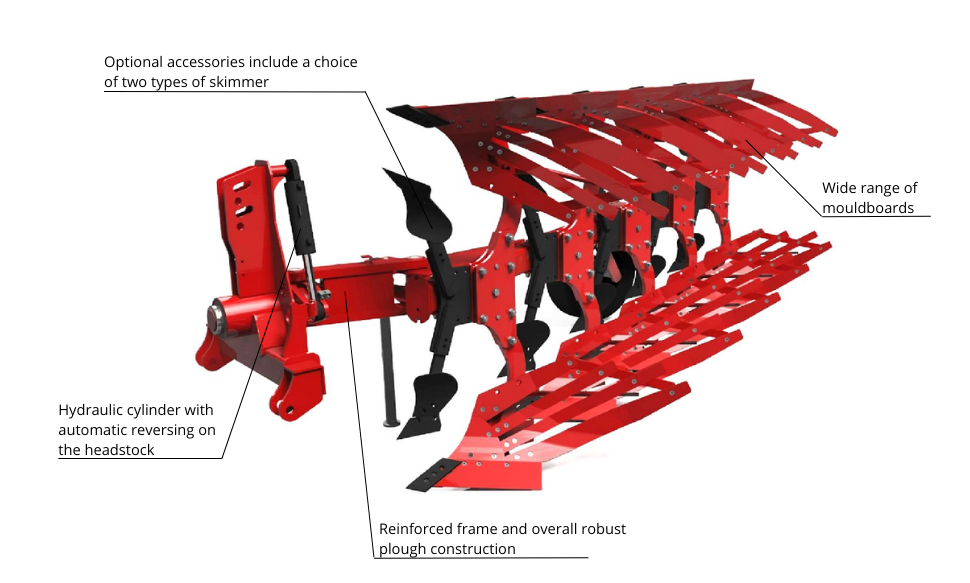

The ploughs are equipped with a hydraulic cylinder with automatic turning on the headland and a crop residue collector. The furrows can be secured either by a shear bolt or by a spring, according to the customer's preference. The standard spacing between the individual bodies is 35, 41, 47 cm, with the machine operator having the option to mechanically change the width of the first furrows.
The ploughing depth can be up to 40 cm and a wide range of attachments is available.
Main advantages od the Infinites:
- Thanks to its reinforced frame, it delivers high performance even in the toughest soil conditions
- Working depth up to 40 cm with active soil mixing and incorporation of plant residues
- Low turning radius at the headland
- Simple operation with one hydraulic circuit
- Wide range of accessories including different types of mouldboards, memory cylinder and more
- Simple maintenance and easy replacement of worn parts
Application:
- Soil aeration and weed control without the need for herbicides
- Improving water infiltration into the soil
- Promoting plant germination
- Control of pests in the ground and in the field
- Suitable for the most challenging soil conditions
INFINITE | 4 | 4+1 | 5 | 5+1 |
|---|---|---|---|---|
Number of furrows | 4 | 4+1 | 5 | 5+1 |
Weight (kg)* | 1323 | 1540 | 1620 | 1740 |
Min. output (HP) | 120 | 140 | 140 | 160 |
Performance (ha/h) | 1,4-1,9 | 1,7-2,4 | 1,7-2,4 | 2,1-2,8 |
Working width (cm) | 35, 41, 47 | 35, 41, 47 | 33, 38, 44, 48 | 33, 38, 44, 48 |
Frame (mm) | 140 x 140 x 10 | 140 x 140 x 10 | 140 x 140 x 10 | 140 x 140 x 10 |
Interbody distance (mm) | 1000 | 1000 | 1000 | 1000 |
Under beam clearance (mm) | 800 - 820 | 800 - 820 | 800 - 820 | 800 - 820 |
Linkage type | cat. 3 | cat. 3 | cat. 3 | cat. 3 |
Tyre size | 10.0/75-15.3 | 10.0/75-15.3 | 10.0/75-15.3 | 10.0/75-15.3 |
LM35
LM40
KV09
KV28
PS40
Other accessories
